HDTVI Camera

Standard DG Camera Series

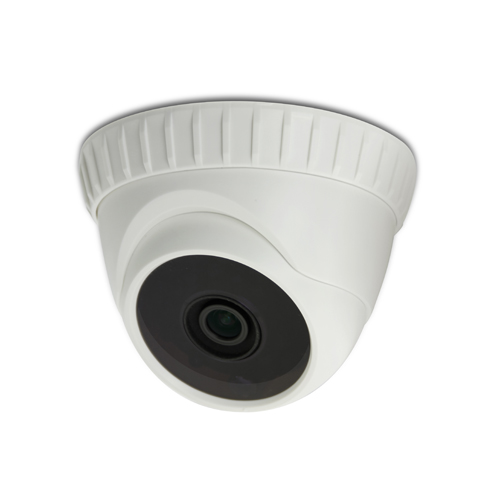

DG103A

1/ 2.7” CMOS,2MP (1080p) f3.6mm fixed lens mini dome 20M (21LED )lens angle 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal)BLC

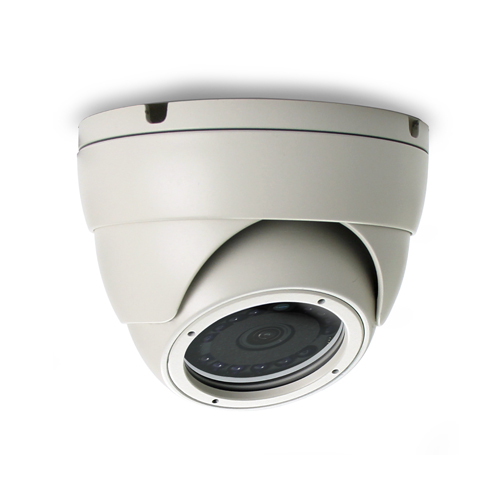

DG104Ax

1/ 2.7” CMOS ,2MP(1080p) f3.6mm fixed lens mini dome 15M (12LED) lens angle 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal)BLC, Metal Housing

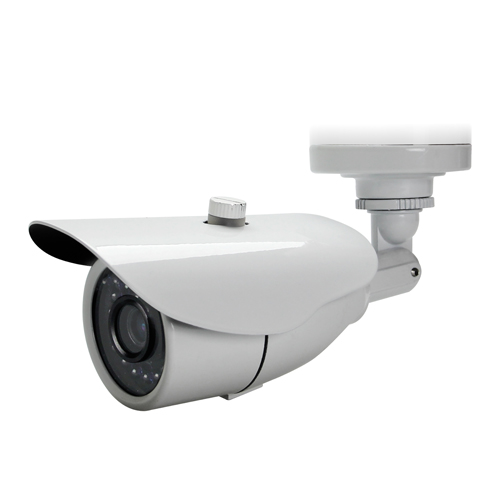

DG105AX

1/ 2.7” CMOS ,2MP(1080p) f3.6mm fixed lens IR mini bullet15M (12LED) metal housinglens angle 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal)

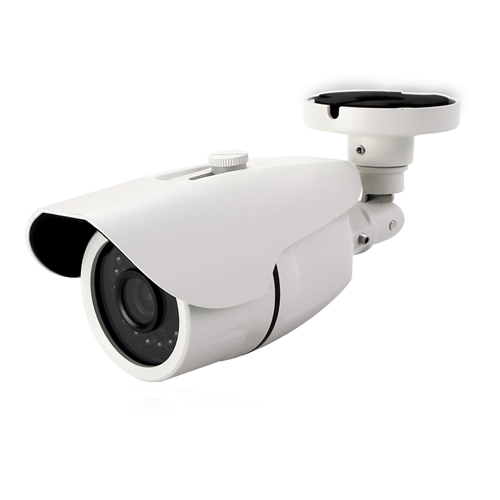

DG105SEB

1/ 2.7” CMOS ,2MP(1080p) f3.6mm fixed lens IR mini bullet15M (12LED)metal housinglens angle 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal) BLC

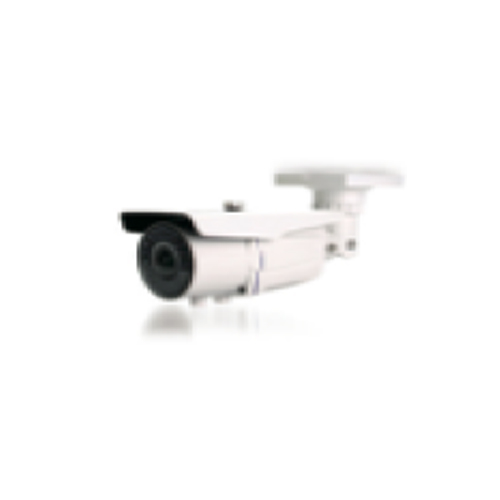

DG108X

1/ 2.9” CMOS ,2MP(1080p) f3.6mm fixed lens IR mini bullet 36 Units (20m) metal housinglens angle 87° (Horizontal) / 46° (Vertical) / 104° (Diagonal) , IP66

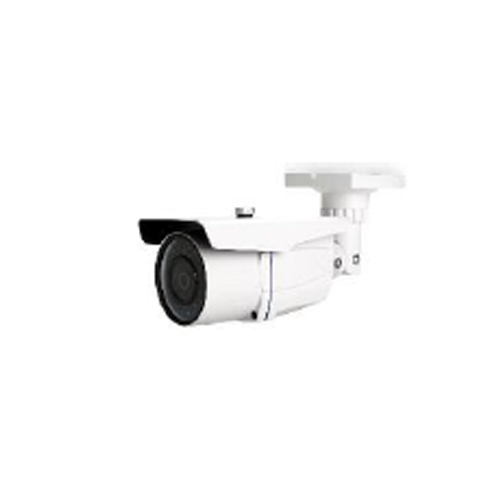

DG205C

1/ 2.7” CMOS ,2MP(1080p) ,Manual Vari-focal (f2.8~12mm) IR bullet (36LED) 25M , IP66lens angle Wide: 104° (Horizontal) /56° (Vertical) /124° (Diagonal) Tele: 35° (Horizontal) /20° (Vertical) /40° (Diagonal) BLC

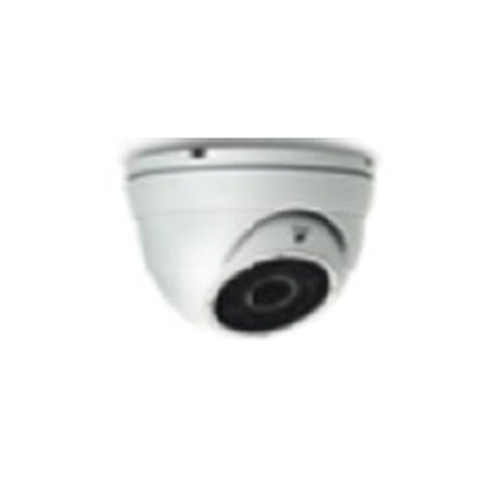

DG206B

1/ 2.7” CMOS ,2MP(1080p), Vari-focal (f2.8~12mm) IR Dome Camera (24LED) 20M , IP66lens angle Wide: 104° (Horizontal) /56° (Vertical) /124° (Diagonal) Tele: 35° (Horizontal) /20° (Vertical) /40° (Diagonal)BLC
