Toolbox.It’s how you finish the last 5% of a project that determines its success. From properly terminated wiring to the correct color wall plates, details matter. ELAN offers a vast assortment of products to help you finish your project in a first rate manner, collect that final payment and most importantly get referrals.

Simple. Intuitive. Colorful. Powerful.

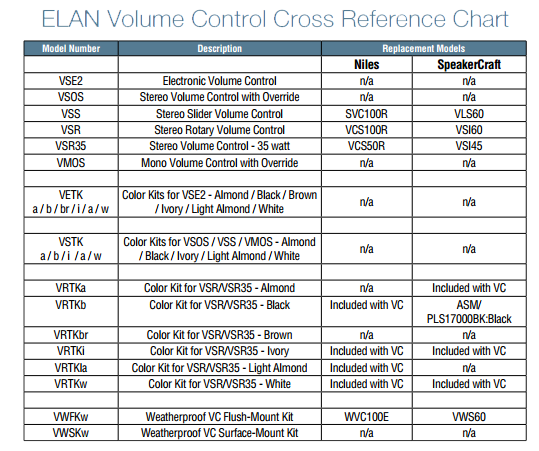

From state-of-the-art volume controls to award-winning Touch Panels and Touchpads, ELAN has products that can control and access all of your in-home equipment with ease, including apps for home and remote control via iPhone, iPad or PC.

No matter which control device you choose for a particular location, though, you'll find the same consistent, colorful, icon-defined interface that is easy to understand and simple to use by family members of all ages

• AUDIO SENSOR

  ORDER NO. AUDSENSOR

  Detects line-level audio. Female-to-male RCA adaptor connects in-line between either the left or right line-level audio output of any source and an A/V controller or receiver. Features adjustable sensitivity and delay.



• VIDEO SENSOR

  ORDER NO. VIDSENSOR

  Detects composite video signals. Female-to-male RCA adaptor connects in-line between the component (Y, Pr, or Pb) or composite video output of any source or its destination. Features adjustable sensitivity and delay.



• CURRENT/MAGNETIC FIELD SENSOR

  ORDER NO. CRSENSOR

  Detects AC current in power cords, as well as the AC magnetic fields generated by motors, transformers, TV’s, etc. The CRSENSOR has a unique clamping device that accommodates a wide variety of different sized AC power cords. The base of the clamping device is removable when magnetic field detection is desired. Features adjustable sensitivity and delay.



• VOLTAGE SENSOR

  ORDER NO. VTSENSOR

  Detects AC or DC voltage from 9-24 Volts. A two-terminal barrier strip is used to connect voltage + and – conductors.



• CONTACT CLOSURE SENSOR

  ORDER NO. CTSENSOR

  Detects dry contact relay closures. A two-terminal barrier strip is used to connect + and – conductors from relay devices.



• LIGHT/LED SENSOR

  ORDER NO. LTSENSOR

  Detects TOSLINK (optional) signals, LEDs and even the displays of many A/V components. Red and Green filters (included) allow for the detection of bi-color LEDs found on many components. Features adjustable sensitivity and delay.



• SIM2 SENSOR INTEGRATION MODULE

  ORDER NO. SIM2

  The SIM2 is a low-cost, simple automation solution designed to work seamlessly with ELANSENSE Sensors. The SIM2 functions as a stand-alone four sensor input/two relay output module that provides dry contact closure or 12V output in response to sensor input status. Built-in relays respond to sensor triggers differently based on conditional logic “and / or” dip switch settings on the unit. This allows any ELANSENSE automation sensor, or standard motion, driveway or door/window sensor, to intelligently trigger relays on the SIM2 based on the dip switch settings. The SIM2 is ideal for Home Theater automation applications, or any application that requires the use of automated triggering through the use of sensors.

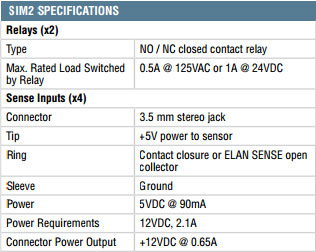

  SIM2 FEATURES

  • Simple automation solution for ELANSENSE Automation Sensors

  • 4 sensor inputs (1 pair for ea. relay)

  • 2 relay outputs which provide contact closure or 12 volts

  • Conditional and/or logic dipswitches provide intelligent relay triggering

  • No software programming required

  • Mounts on any flat surface (mounting screws & adhesive backing strip)

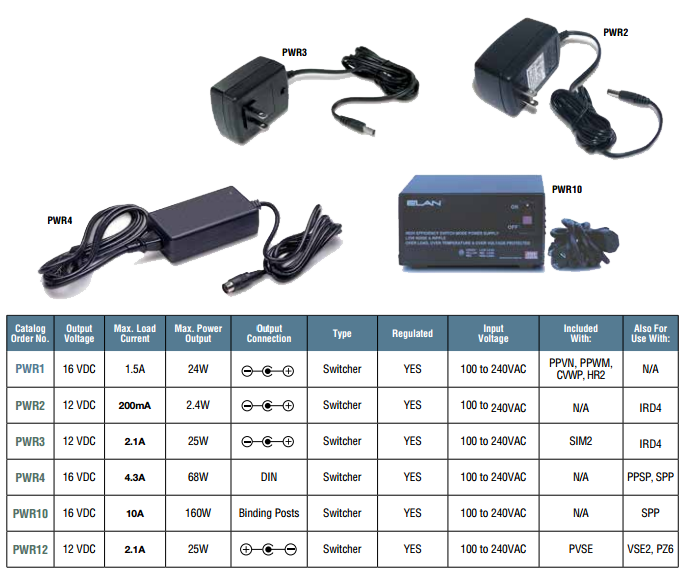

  • Includes 12VDC, 2.1A Power Supply
